Studio speakers with a wide sweet spot.

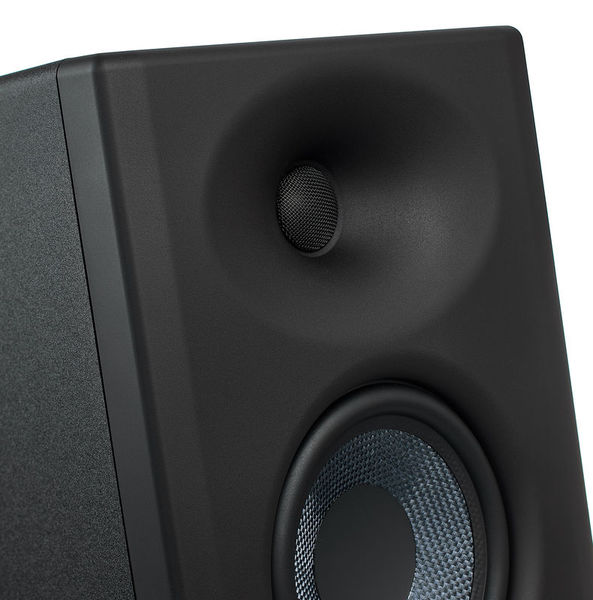

We outfitted the Eris XT studio monitors with a new EBM (Elliptical Boundary Modeled) wave guide designed by none other than Hugh Sarvis of WorxAudio, the mind behind our award-winning CDL loudspeakers and lauded R-Series monitors. The result? A superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. It’s ideal for group listening and collaboration—while narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.
Lows that go lower.

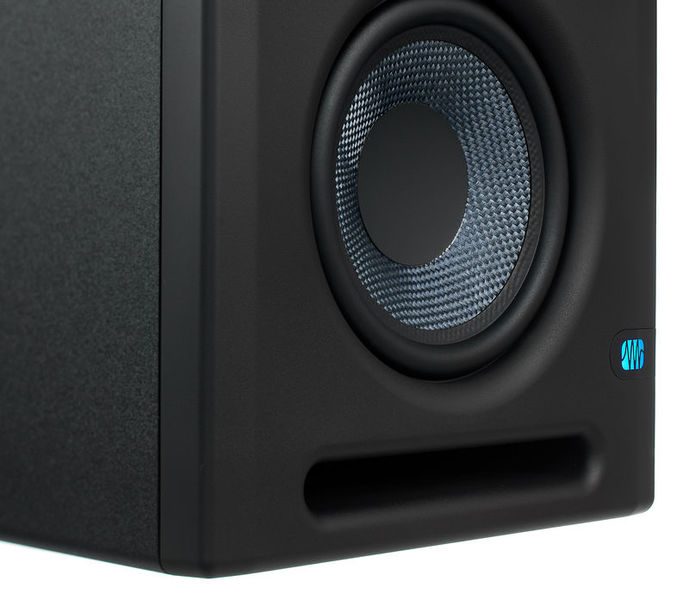

The familiar woven composite low-frequency driver still offers Eris’ signature tight, clear bass; plenty of punch and no flub. Eris E5 XT studio monitors sport a ported enclosure that is larger than that of their predecessors, allowing them to reach down to an astonishing 48 Hz. That’s 10 Hz below previous models—with no subwoofer required!
Set up your studio monitors for your room.

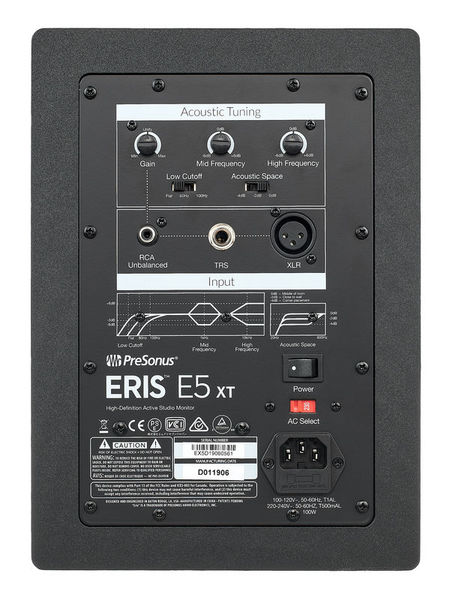

We know modern recording studios can be anywhere from a spare bedroom to a multi-million dollar facility; that’s why every studio monitor we make is equipped with controls that ensure the flattest response in your mix environment. Acoustic tuning controls allow you to configure the Eris E5 XT perfectly for your room—you get Low-cut, Mid, and High controls, as well as 3-way acoustic space tuning that allows you to easily compensate for the sonic consequences of speaker placement against a wall or in a corner.
Studio monitor connections.

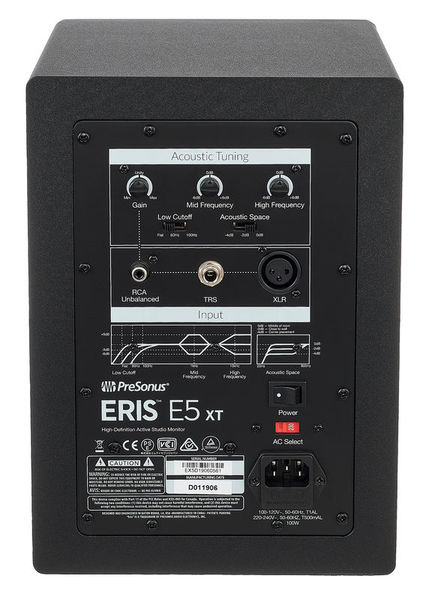

It’s easy to feed audio to your Eris E5 XT studio monitors from an audio interface, mixer, monitor controller, or almost any other line-level source. Eris E5 XT monitors provide balanced XLR, balanced ¼” TRS, and unbalanced RCA line-level inputs. You’ll have no problem hooking your Eris speakers up to virtually anything.
Accuracy defined.
Suitable for both home recording studios and professional mix engineering, the Eris XT studio monitors combine sterling audio quality with the flexible tuning and connectivity you’ve come to expect from PreSonus. It’s Eris, remastered.
Specs
-
Features
Components and construction
- 5.25-inch woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- Front-firing acoustic port for superior bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
- 102 dB maximum continuous SPL
User controls
- HF Adjust (±6 dB, continuously variable)
- Midrange Adjust (±6 dB, continuously variable)
- Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
- Highpass filter (Off, 80 Hz, 100 Hz)
Power and safety
- 70 watt, Class AB biamplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED
Inputs and outputs
- Balanced XLR/¼-inch
- Unbalanced RCA inputs
Active Studio Monitor E5XT
- 5" Woofer
- 1" Tweeter with silk membrane
- Frequency range: 48 - 22000 Hz
- Gain control
- Center control (Bell EQ, 1 kHz, +/- 6 dB)
- Height control (cow tail filter, +/- 6 dB)
- Lowcut switchable at 80 or 100 Hz
- Acoustic space switch (-2 dB, -4dB)
- 80 Watt Class AB bi-amplification
- Maximum level: 102 dB (continuous operation)
- Input: XLR and jack (balanced) and RCA (unbalanced)
- 100° (H) x 60° (V) EBM Waveguide
- Delay
- Output current limiter
- Over-temperature, transient and subsonic protected circuit design
- Dimensions (W x D x H): 203 x 228 x 279 mm
- Weight: 5 kg
